4-in-1 Gas Detector: Which Gases Are Detected and Where Are They Used?

The 4-in-1 gas detector is a portable gas monitoring device, which can simultaneously detect many common atmospheric environmental risks with one instrument. Workers don’t need to carry several different gas detectors, but they can use one multi-gas detector to monitor the concentration of multiple gases at the same time.

A typical 4-in-1 gas detector can detect combustible gas (LEL), oxygen (O), carbon monoxide (CO) and hydrogen sulfide (HS). These gases may bring different types of safety risks, including fire, explosion, hypoxia and toxic gas exposure.

What Gases Can the 4-in-1 Gas Detector Detect?

The four gas detection channels are aimed at different monitoring requirements.

LEL combustible gas monitoring is used to detect whether there is combustible gas in the air and help identify combustible gas environments that may reach dangerous concentrations.

Oxygen (O₂) Monitoring is used to identify oxygen-deficient or oxygen-rich environments. These environments may bring security risks during industrial operations and confined space operations.

Carbon monoxide (CO) is a toxic gas, which may be produced by combustion process, industrial equipment and other sources.

Hydrogen sulfide (HS) is also a toxic gas, which may exist in oil and gas operations, sewage treatment and other application environments.

Monitoring these four gases at the same time allows workers to use a portable device to obtain more comprehensive environmental gas information.

Why Use a 4-in-1 Gas Detector?

Many potential gas risks may exist at the same time in many working environments. For example, when a worker enters a confined space, it may be necessary to detect combustible gas and toxic gas in addition to oxygen concentration.

Portable 4-in-1 gas detector can monitor multiple gases at the same time through one device, thus simplifying the detection process and reducing the need for staff to carry multiple independent detection instruments.

HRP-B1000-C 4-in-1 gas detector is designed for this kind of application. It can simultaneously monitor combustible gas, oxygen, carbon monoxide and hydrogen sulfide, and provide real-time concentration display and alarm prompt.

How Does the Portable 4-in-1 Gas Detector Work?

The gas detector monitors the surrounding environment through the internal gas sensor. According to different gas types, combustible gas, oxygen and toxic gas can be detected by different sensing technologies.

HRP-B1000-C adopts natural diffusion sampling method to make the gas in the surrounding environment enter the sensor detection area. The signal generated by the sensor is converted into gas concentration data and displayed on the screen after being processed by the internal system of the equipment.

When the detected gas concentration reaches the preset alarm value, the detector can give an alarm by means of sound, light and vibration.

Where Is the 4-in-1 Gas Detector Applied?

Portable four-in-one gas detector is usually used in places where workers may face multiple atmospheric environmental risks at the same time.

Typical applications include:

• Oil and gas facilities
• Petrochemical plant
• Chemical plant
• Mine operation
• Sewage treatment plant
• Gas storage area
• Industrial production workshop
• Confined space operation
• Fire fighting and emergency rescue
• Pipeline inspection and maintenance

In confined spaces such as storage tanks, underground areas, pipelines, sewers and closed containers, it is particularly important to detect the atmospheric environment because the gas concentration may change with the working conditions.

Alarm Function and Workplace Safety

The gas detector not only needs to display the gas concentration data, but also needs to remind the staff in time when the ambient gas condition is abnormal.

When HRP-B1000-C detects that the gas concentration reaches the set alarm value, it can give an alarm by means of sound, light and vibration. This multiple alarm mode is helpful to attract users’ attention in time in industrial working environment.

The alarm threshold should be set according to the target gas, workplace requirements, applicable laws and regulations, and the instructions of the gas detector manufacturer. Regular calibration and inspection are also important measures to maintain the reliable detection performance of gas detectors.

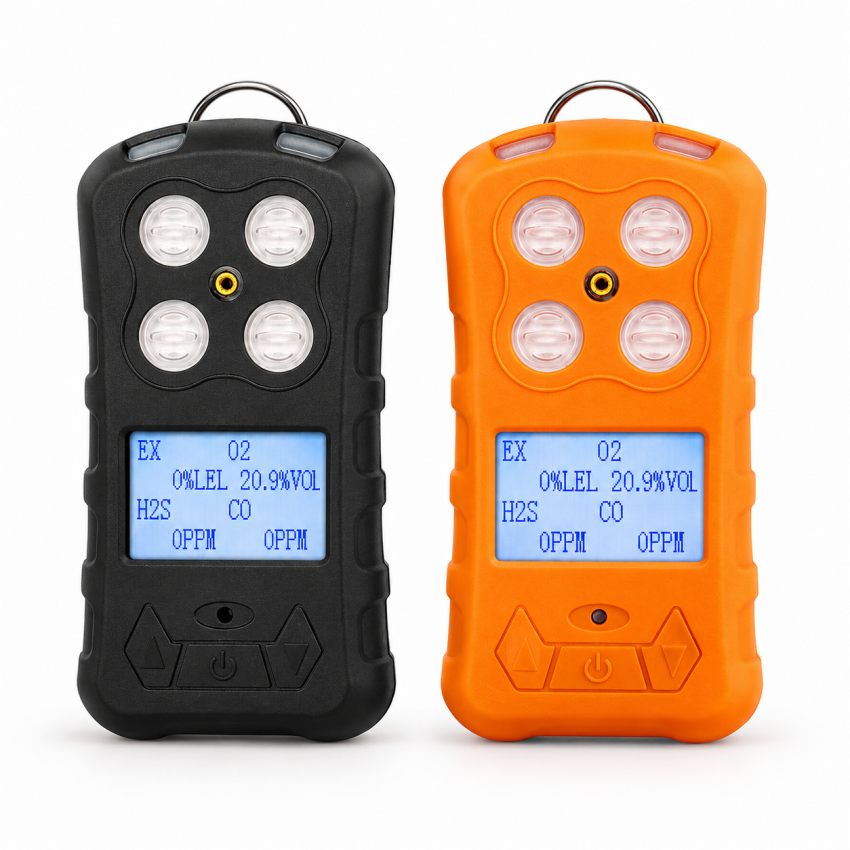

HRP-B1000-C 4 in 1 Gas Detector

HRP-B1000-C 4-in-1 gas detector is a portable multi-gas monitoring and personal safety protection equipment. It integrates four gas detection functions into a compact device to provide real-time gas concentration monitoring for industrial applications.

The detector is suitable for application scenarios where workers need to detect multiple gas risks simultaneously during patrol inspection, equipment maintenance, emergency response and confined space operations.

For more product information, please visit the product page of HRP-B1000-C 4-in-1 gas detector.
