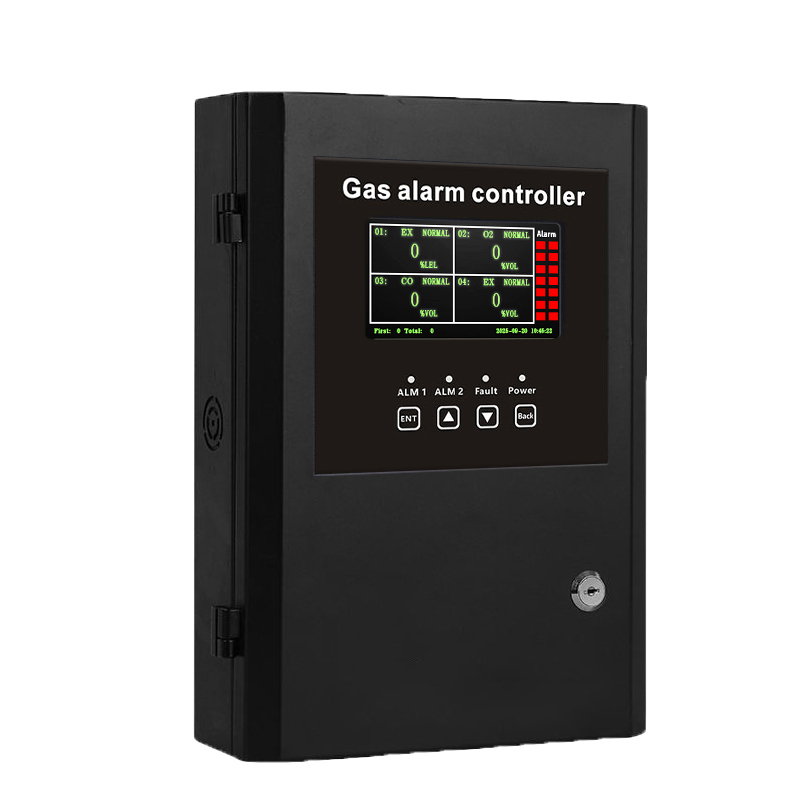

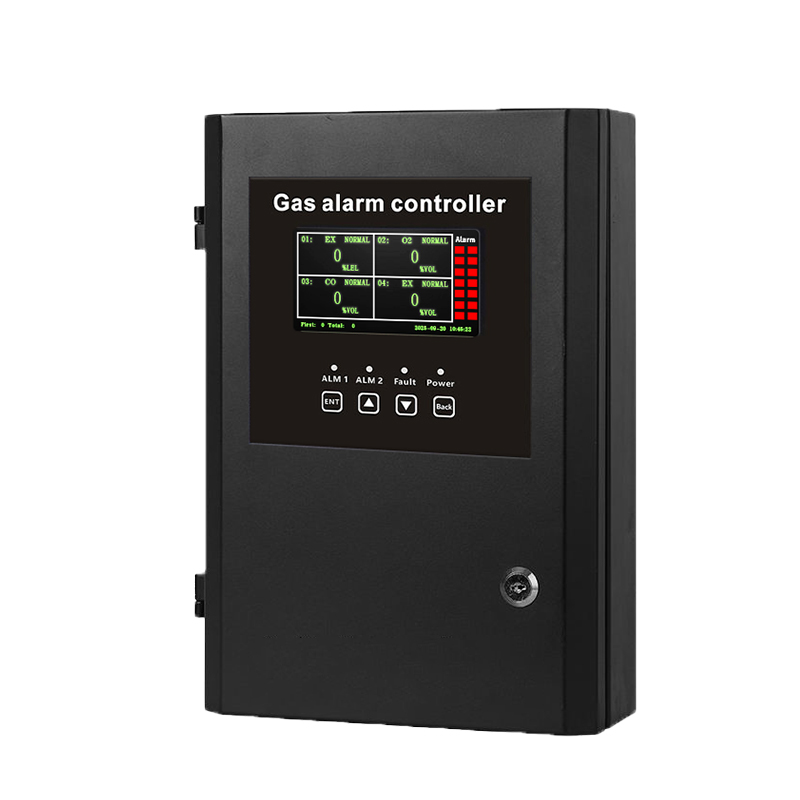

K6000 three-wire bus Gas Alarm Controller
The K6000 gas alarm controller is a centralized monitoring device employing a multi-loop branch architecture. It can simultaneously connect to up to 32 fixed gas detectors, enabling real-time monitoring of flammable, toxic gases, and oxygen. The device is equipped with a color LCD screen that clearly displays the gas concentration, operating status, alarm information, and historical records for each detection point, making it intuitive and easy to manage.
-
High precision
-
Global Shipping
-
Customized
-
24*7 support
-
OEM/ODM
- Features
- Parameters
- Accessories
- Gases and Ranges
The controller can trigger audible and visual alarms based on gas concentration and, through relays or communication interfaces, link ventilation systems, solenoid valves, and other safety devices for rapid on-site response. The system supports multi-level alarm management, fault self-diagnosis, data logging, and access control. It can be widely used in various scenarios such as industrial plants, gas stations, laboratories, warehouses, and hazardous materials storage areas, and is a crucial front-end device for building a safe gas alarm system.
The controller adopts a distributed loop architecture, with each detector having independent wiring, ensuring no interference from each other in case of faults. It can connect up to 32 detectors, making it ideal for medium to large-scale systems. The color LCD screen displays concentration, status, and historical data in real time. The system is highly scalable and supports relay output and a 485 communication interface.
Single Gas Detec
- Display Screen: 4.3-inch / 7-ich LCD color display
- Setting Method: Button/Touchscreen (optional)
- Power Supply: AC 85-240V 50Hz/60Hz
- Relay Output: 4 /6channels of passive relay output, contact rating 10 A / 220 VAC
- Operating Temperature: -10℃ to 50℃
- Relative Humidity: < 95% (non-condensing)
- System Power: Maximum 10 W (without external devices connected)
- Maximum Detectors Supported: Branch wiring (4-20mA) 32units
- Connection Method: 3-wire Branch wiring
- Digital upload: RS485 Modbus-RTU
- Alarm Type: Two-level alarm (user-configurable)
- Alarm Indication: Real-time alerts via indicator lights, LCD display, and buzzer
- Storage Capacity: Stores up to 20000 alarm event records
- Mounting: Wall-mounted installation
- Dimensions: 245 * 340 * 90 mm
