HRP530 Mini Handheld Remote Gas Detector
HRP530 Mini Handheld Remote Gas Detector is a compact and portable device designed for fast, reliable gas detection in industrial and hazardous environments.
-
High precision
-
Global Shipping
-
Customized
-
24*7 support
-
OEM/ODM
- Features
- Parameters
- Accessories
- Gases and Ranges
HRP530 Mini Handheld Telemetering Gas Detector
Product description
HIREP HRP530 mini handheld telemetering gas detector is a compact and high-precision laser methane detector, which is specially designed for fast and non-contact detection of CH4 gas leakage. The instrument adopts tunable diode laser absorption spectroscopy (TDLAS) technology, which can remotely detect methane concentration without direct contact with the leaked gas source.
The detection range of HRP530 is 0–100,000 ppm m, the resolution is 1 ppm·m, and the fastest response time is 0.1 second, which can quickly and reliably identify gas leakage. The equipment provides optional detection distances of 15m, 30m and 60m, which is suitable for detecting pipelines, storage facilities, industrial equipment and other potentially dangerous areas from a safe distance.
The mini handheld design makes the whole machine weigh only 230 grams, and the durable industrial aluminum alloy shell combined with IP65 protection level can meet the use requirements in harsh working environment. Through Bluetooth connection and dedicated detection APP, data transmission and monitoring can be carried out conveniently. When abnormal methane concentration is detected, sound and vibration alarm can remind the operator in time.
principle of operation
HRP530 adopts TDLAS (tunable diode laser absorption spectroscopy) technology for remote methane detection.
The instrument emits infrared laser to the target area. When the laser passes through an environment containing methane, CH4 molecules will absorb the laser with a specific wavelength. The detector calculates the methane concentration in the optical path by analyzing the degree of laser absorption.
This laser detection technology enables HRP530 to realize remote and non-contact methane leakage detection, which helps operators to check inaccessible or potentially dangerous areas without directly approaching the suspected leakage point.
Application industry
HRP530 mini handheld telemetry gas detector is suitable for a wide range of industrial gas safety applications, including:
- Natural gas and gas transmission and distribution-pipeline leakage detection and gas facilities maintenance
- Petroleum and natural gas industry-methane leakage detection around production and storage facilities
- Petrochemical industry-monitoring of pipelines, valves, storage tanks and process equipment
- Gas filling station-natural gas equipment and pipeline inspection
- Detection of methane leakage around gas equipment in power plant
- Industrial manufacturing-daily inspection of gas systems and equipment
- City Gas System —— Detection and Maintenance of Gas Pipe Network
- Pipeline inspection-remote detection of methane leakage from a safe distance
- Environmental Monitoring —— Detection and Location of Methane Emission
Product advantage
1. Non-contact remote detection
The methane leakage can be detected remotely without direct contact with the suspected leakage point, which improves the detection efficiency and the safety of operators.
2. TDLAS laser technology
Advanced tunable diode laser absorption spectroscopy technology is adopted to provide high sensitivity and reliable methane detection ability.
3. Quick response
The response time can reach 0.1 second at the earliest, which can quickly identify methane leakage during inspection.
4. Remote detection
Provide optional detection distances of 15m, 30m and 60m, which can flexibly meet the needs of different industrial inspection environments.
5. Wide detection range
The detection range reaches 0–100,000 ppm m, which can cover a variety of methane leakage detection requirements.
6. Small and light
The weight of the whole machine is only 230 grams, and the mini handheld design is easy to carry and suitable for long-term on-site inspection.
7. Strong and durable industrial shell
Industrial aluminum alloy shell and IP65 protection level help the detector to adapt to the harsh field working environment.
8. Bluetooth and dedicated apps
Bluetooth connection is supported, and convenient data transmission and monitoring can be carried out through a dedicated detection APP.
9. Sound+vibration double alarm
Through the double alarm mode of sound and vibration, the operator is reminded in time when methane leakage is detected.
HRP530 Mini Handheld Telemetry Gas Detector FAQ
1. What is HRP 530 mini handheld telemetering gas detector?
HRP530 is a portable laser methane telemeter, which is used to detect CH4 gas leakage from a certain distance. It adopts TDLAS technology, which can realize fast, high-precision and non-contact methane detection.
2. What gas can HRP 530 detect?
HRP530 is specially used to detect methane (CH4), which is suitable for natural gas leakage inspection and industrial methane monitoring.
3. How does HRP 530 detect methane?
The detector adopts tunable diode laser absorption spectroscopy (TDLAS) technology. The laser interacts with methane molecules along the optical path, and the instrument determines the methane concentration by analyzing the absorbed signal of the laser.
4. Is HRP 530 a contact or non-contact gas detector?
HRP530 is a non-contact remote gas detector. Operators can detect methane leakage without placing the instrument directly at the suspected leakage point.
5. What is the detection range of HRP 530?
The detection range of HRP530 is 0–100,000 ppm m and the resolution is 1 ppm m.
6. How far can HRP 530 detect?
HRP530 provides three optional detection distances of 15m, 30m and 60m, depending on the product configuration.
7. What is the response time of HRP 530?
The response time of HRP530 is about 0.1 second, which can help users quickly find methane leakage during inspection.
8. Can HRP 530 be used for natural gas pipeline inspection?
Sure. HRP530 is especially suitable for natural gas pipeline inspection, which can help operators to remotely identify potential methane leakage in pipelines and related equipment.
9. Can HRP 530 be used in hazardous industrial environment?
HRP530 is equipped with industrial aluminum alloy shell with IP65 protection level, which can meet the use requirements in harsh environment. However, before use in specific hazardous areas, users should confirm the applicable product certification and hazardous area requirements according to the actual installation or use environment.
10. Does HRP 530 support Bluetooth?
Support. HRP530 supports Bluetooth data transmission, and can be connected with a dedicated detection APP to facilitate data monitoring and management.
11. How does HRP 530 remind users of methane leakage?
The detector provides sound and vibration alarm. When the detected methane concentration reaches the set alarm threshold, the equipment will give an alarm reminder in time.
12. Is HRP 530 easy to carry?
Convenient. HRP530 adopts mini handheld design, and the weight of the whole machine is about 230 grams, which is suitable for pipeline inspection, on-site maintenance and daily gas leakage detection.
13. What is the protection level 13. HRP530?
The protection level of HRP530 is IP65, which can provide dust and water spray protection under specified test conditions.
14. which industries can HRP 530 be applied to?
HRP530 can be used in natural gas, petroleum and natural gas, petrochemical industry, gas transmission and distribution, power generation, industrial manufacturing, gas filling stations, pipeline inspection and environmental monitoring.
15. can hirep provide OEM and ODM services for HRP530?
Sure. HIREP supports OEM, ODM, OBM and software redevelopment services, and can provide customized solutions according to project requirements, including product configuration, brand, software and other customized requirements.
HRP530 Mini Handheld Remote Gas Detector
- Target Gas: CH4, Methane
- Type: CH4 Gas Leak Analyzer, Laser Methane Remote Detector
- Accuracy Class: High Accuracy
- Alarm Mode: Sound + Vibration
- Material: Industrial Aluminum Alloy
- Warranty: 1 Year
- Customized Support: OEM, ODM, OBM, Software Reengineering
- Place of Origin: Henan, China
- Model Number: HRP530
- Brand Name: HIREP
- Power: Rechargeable Lithium Battery
- Detection Principle: Tunable Diode Laser Absorption Spectroscopy (TDLAS)
- Data Transmission: Bluetooth, with Dedicated Detection App
- Detection Range: 0–100,000 ppm·m
- Ingress Protection: IP65
- Resolution: 1 ppm·m
- Laser Safety Class: Infrared Detection Laser: Class 1; Green Indicator Laser: Class 3R
- Detection Distance: 15 m / 30 m / 60 m (Optional)

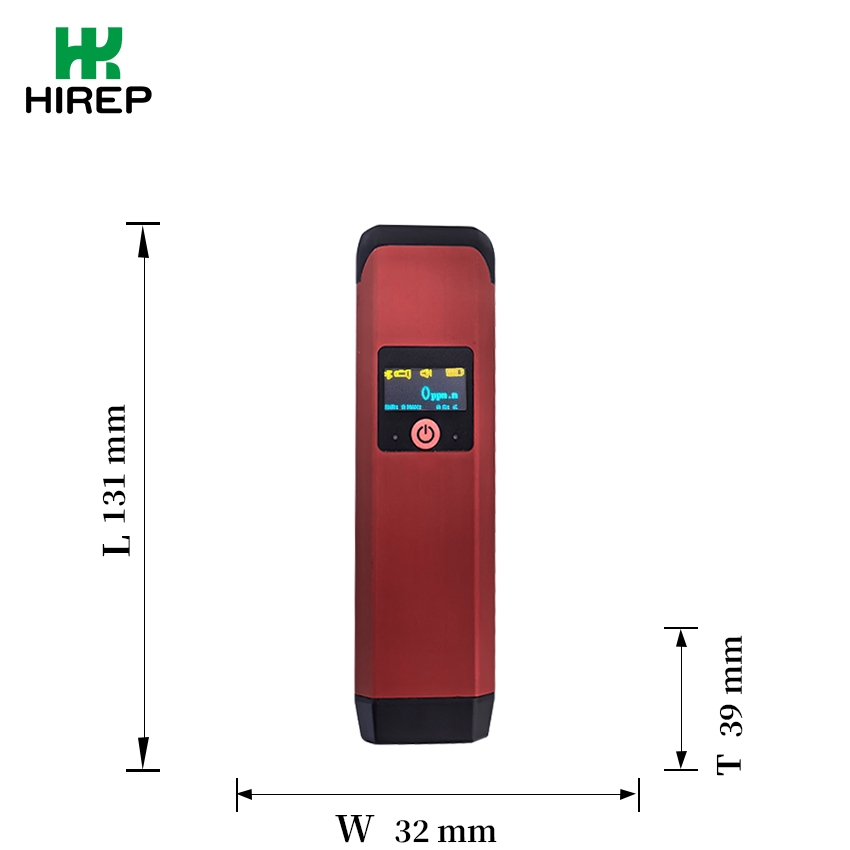

- Instrument Dimensions: 131 × 32 × 39 mm (L × W × H)
- Instrument Weight: 230 g
Usb cable(Standard):
This Micro USB cable features thickened copper cores and high-density nylon braiding, offering excellent resistance to bending and abrasion for long-lasting durability.
Portable Calibrator Calibration Gas Cylinder(Optional):
The high-precision standard gas supply device designed by portable gas detector is used for periodic calibration, zero correction and range verification of sensors in the field or laboratory to ensure the accuracy and reliability of long-term operation data of testing equipment.
Calibration Hood(Standard):
The compact calibration cover designed by portable hand-held gas detector is used to quickly and accurately complete the zero calibration and range calibration of sensors on the equipment site. It is small, light and precise in structure, which ensures that the standard gas can cover the sensor probe efficiently and avoid the interference of ambient airflow. It is an indispensable professional accessory for daily maintenance and compliance testing.
Air Sampling Probe(Optional):
The high-precision and long-distance gas sampling extension tool designed by portable hand-held gas detector is used to safely and stably extend the probe into narrow space, high place, deep well, pipeline or dangerous area for remote gas detection, which greatly improves the operation safety and detection coverage.Typically used with sampling tubes.
Portable Hand-held Gas Detector Charger(Standard):
The high compatibility, safe and reliable charging solution designed by portable hand-held gas detector includes a standard two-pin plug power adapter and a USB-A to Micro-USB/Type-C data cable (matched according to the equipment interface), which ensures that the equipment can quickly recover power after field inspection, factory duty or emergency tasks, and ensures continuous and stable operation.
Extended Sampling Tube(Optional):
The portable hand-held or pumping gas detector is designed with a high flexibility and corrosion resistance to extend the sampling catheter, which is used to extend the gas inlet of the equipment to the detection points that are difficult to directly contact, such as the depth of the pipeline, the equipment interlayer, the high vent, the inside of the closed container, etc., so as to realize "remote accurate sampling" and greatly improve the detection coverage and operation safety.
Water Vapor and Dust Filter(Optional):
Blocks solid particles from entering the detector's gas path, preventing blockage and avoiding particle adhesion to the sensor surface, which could cause sensor poisoning, decreased sensitivity, slowed response, or even permanent failure. It also avoids physical interference from dust, ensuring the sensor only contacts the measured gas, thus guaranteeing measurement accuracy.
| Name | Chemical Formula | Lower Explosive Limit(Volume Fraction)in Air%VOL|Lower Limit | Serial No | Name | Chemical Formula | Lower Explosive Limit(Volume Fraction)in Air%VOL|Lower Limit | |
| 1 | Ethane | C₂H₆ | 3.0 | 49 | Cyclohexane | CH₂ (CH₂)₄CH₂ | 1.2 |
| 2 | Ethanol | C₂H₅OH | 3.4 | 50 | Cyclohexanol | CH₂ (CH₂)₃CHOHCH₂ | 1.2 |
| 3 | Ethylene | C₂H₄ | 2.8 | 51 | Cyclohexanone | CH₂ (CH₂)₃COCH₂ | 2.8 |
| 4 | Hydrogen | H₂ | 4.0 | 52 | Cyclopropane | CH₂CH₂CH₂ | 2.4 |
| 5 | Methane | CH₄ | 5.0 | 53 | Decane | C₁₀H₁8 | 0.7 |
| 6 | Methanol | CH₃OH | 5.5 | 54 | Cyclohexene | CH₂ (CH₂)₃CHCHCH₂ | 1.2 |
| 7 | Acetylene | C₂H₂ | 2.5 | 55 | Diacetone Alcohol | (CH₃)₂COHCH₂COCH₃ | 1.8 |
| 8 | Propanol | C₃H₇OH | 2.5 | 56 | Di-n-butyl Ether | C₄H₉OC₄H₉ | 0.9 |
| 9 | Propane | C₃H₈ | 2.2 | 57 | Dichlorobenzene | (C₆H₄)Cl₂ | 2.2 |
| 10 | Propylene | C₃H₆ | 2.4 | 58 | Diethylamine | (C₂H₅)₂NH | 1.7 |
| 11 | Toluene | C₆H₅CH₃ | 1.2 | 59 | Dimethylamine | (CH₃)₂NH | 2.8 |
| 12 | Xylene | C₆H₄ (CH₃)₂ | 1.0 | 60 | Dimethylaniline | (CH₃)₂C₆H₃NH₂ | 1.2 |
| 13 | Dichloromethane | C₂H₄Cl₂ | 5.6 | 61 | Dicyclohexylamine | (CH₂)₄O₂ | 1.9 |
| 14 | Dichloroethylene | C₂H₂Cl₂ | 6.5 | 62 | Ethylene Oxide | OCH₂CH₂CH₂ | 1.9 |
| 15 | Dichloropropane | C₃H₆Cl₂ | 3.4 | 63 | Diethyl Ether | C₂H₅OC₂H₅ | 1.8 |
| 16 | Diethyl Ether | C₂H₅OC₂H₅ | 1.7 | 64 | Ethyl Acetate | CH₃COOC₂H₅ | 2.1 |
| 17 | Dimethyl Ether | CH₃OCH₃ | 3.0 | 65 | Ethyl Acrylate | CH₂CHCO₂C₂H₅ | 1.7 |
| 18 | Formaldehyde | CH₂OCH | 4.0 | 66 | Styrene | C₆H₅C₂H₃ | 1.0 |
| 19 | Acetic Acid | CH₃COOH | 4.0 | 67 | Ethylene Oxide | CH₂CH₂O | 2.6 |
| 20 | Acetone | CH₃COCH₃ | 2.3 | 68 | Ethanethiol | C₂H₅SH | 2.3 |
| 21 | Acetyl Chloride | (CH₃CO)₂CH₂ | 1.7 | 69 | Ethyl Mercaptan | C₂H₅SCH₃ | 2.0 |
| 22 | Chloroform | CH₃COCl | 5.0 | 70 | Methyl Ethyl Ketone | C₃H₇COCH₃ | 1.8 |
| 23 | Acrylonitrile | CH₂CHCN | 2.8 | 71 | Ethylamine | C₂H₅NH₂ | 3.5 |
| 24 | Allyl Chloride | CH₂CHCH₂Cl | 3.2 | 72 | Gasoline | — | 0.9 |
| 25 | Methylacetylene | CH₃CCH | 1.7 | 73 | Kerosene | — | 0.7 |
| 26 | Amyl Acetate | CH₃CO₂C₅H₁1 | 1.0 | 74 | Turpentine | — | 1.8 |
| 27 | Aniline | C₆H₅NH₂ | 1.2 | 75 | Nitrobenzene | C₆H₅NO₂ | 1.8 |
| 28 | Benzene | C₆H₆ | 1.2 | 76 | Nitromethane | CH₃NO₂ | 7.1 |
| 29 | Benzaldehyde | C₆H₅CHO | 1.4 | 77 | Phenol | C₆H₅OH | 1.3 |
| 30 | Benzyl Chloride | C₆H₅CH₂Cl | 1.1 | 78 | Phenylacetylene | C₆H₅C₂H | 1.1 |
| 31 | Bromobenzene | C₆H₅CH₂Br | 2.5 | 79 | Ethylbenzene | C₆H₄C₂H₅ | 1.0 |
| 32 | Bromoethane | CH₃CH₂Br | 6.7 | 80 | Methyl Formate | HCOOC₂H₅ | 2.7 |
| 33 | Butadiene | CH₂CHCHCH₂ | 2.0 | 81 | p-Dioxane | C₄H₈O₂ | 2.0 |
| 34 | Butane | C₄H₁0 | 1.9 | 82 | Isobutane | i-C₄H₁0 | 1.8 |
| 35 | Butanol | C₄H₉OH | 1.8 | 83 | Naphthalene | C₁₀H₈ | 1.9 |
| 36 | Butylene | C₄H₈ | 1.6 | 84 | Nonane | CH₃ (CH₂)₇CH₃ | 0.7 |
| 37 | Butyraldehyde | C₃H₇CHO | 1.4 | 85 | Nonanol | CH₃ (CH₂)₇CH₂OH | 0.8 |
| 38 | Butyl Butyrate | C₃H₇COOC₄H₉ | 1.2 | 86 | Valeraldehyde | C₆H₁₀0 | 1.2 |
| 39 | Butyl Methyl Ketone | C₄H₉COCH₃ | 1.2 | 87 | Pentane | C₅H₁2 | 1.4 |
| 40 | Carbon Disulfide | CS₂ | 1.0 | 88 | Pentanol | C₅H₁₁OH | 1.2 |
| 41 | Chlorobenzene | C₆H₅Cl | 1.3 | 89 | Propylamine | C₃H₇NH₂ | 2.0 |
| 42 | Chlorobutane | C₄H₉CH₂Cl | 1.8 | 90 | Propyl Methyl Ketone | C₄H₉COCH₃ | 1.5 |
| 43 | Chloroethane | CH₃CH₂Cl | 3.8 | 91 | Pyridine | C₅H₅N | 1.7 |
| 44 | Chloroethylene | CH₂CHCl | 3.8 | 92 | Tetrahydrofuran | C₄H₈O | 2.0 |
| 45 | Chloromethane | CH₃Cl | 8.1 | 93 | Tetrahydrofurfuryl | C₅H₁₀O₂ | 1.5 |
| 46 | 2-Chloropropane | CH₃CHCICH₃ | 2.6 | 94 | Triethylamine | (C₂H₅)₃N | 1.2 |
| 47 | Cresol | C₆H₄OH | 1.1 | 95 | Trimethylamine | (CH₃)₃N | 2.0 |
| 48 | Cyclobutane | CH₂CH₂CH₂CH₂ | 1.8 | 96 | Trioxane | (CH₂O)₃ | 3.0 |
