HRP-670 Tetrahydrothiophene Detector | Portable THT Gas Detector
HRP-670 is a portable tetrahydrothiophene (THT) detector designed for fast and reliable monitoring of THT concentrations in industrial and gas-safety applications.
-
High precision
-
Global Shipping
-
Customized
-
24*7 support
-
OEM/ODM
- Features
- Parameters
- Accessories
- Gases and Ranges
HRP-670 Tetrahydrothiophene Detector: Portable THT Gas Detection Solution
Product introduction
HRP-670 tetrahydrothiophene detector is a professional portable gas detector, which is specially used to detect tetrahydrothiophene (THT). The instrument adopts a pumping sampling system, and actively sucks gas into the instrument for detection, which can realize fast and reliable THT concentration measurement.
Tetrahydrothiophene (THT) is usually used as a natural gas odorizing agent. HRP-670 is suitable for natural gas pipeline inspection, gas transmission and distribution system, pressure regulating station, industrial gas facilities and suspected leakage point detection.
Principle of operation
HRP-670 actively sucks the surrounding gas into the detection cavity through the built-in sampling pump, and the sensor detects the THT concentration in the gas. After signal processing, the detection result is displayed on the instrument.
When the detected concentration reaches the preset alarm value, the instrument will give an alarm to remind the staff to carry out safety inspection in time.
Detection process:
Gas sampling → sensor detection → signal processing → concentration display → overrun alarm.
Application area
HRP-670 can be applied to a variety of gas safety detection scenarios, including:
- Inspection of natural gas pipeline
- Urban gas transmission and distribution
- Gas pressure regulating station
- Detection of natural gas odorizing agent
- Gas equipment maintenance
- Suspected gas leakage detection
- Oil and gas facilities
- Industrial gas system
Product advantage
Pump-suction sampling
Active pumping design can collect gas samples from designated locations, such as valves, flanges, pipeline joints and other suspected leakage points, which is convenient for workers to carry out targeted detection.
Adjustable alarm point
The alarm point can be set according to the actual use requirements, and when the detection value reaches the set value, it will give an alarm in time to help the staff find the abnormality quickly.
Long working hours
HRP-670 adopts built-in rechargeable lithium battery, and its working time is ≥10 hours, which is suitable for long-term on-site inspection and mobile detection.
Explosion-proof design
The explosion-proof mark of the instrument is Ex ib IIC T4 Gb, which is suitable for relevant hazardous industrial environments that require explosion-proof performance.
Wide temperature range
It supports the working temperature of -30 C ~ 70 C, and can meet the field detection requirements in different outdoor and industrial environments.
Portable and compact

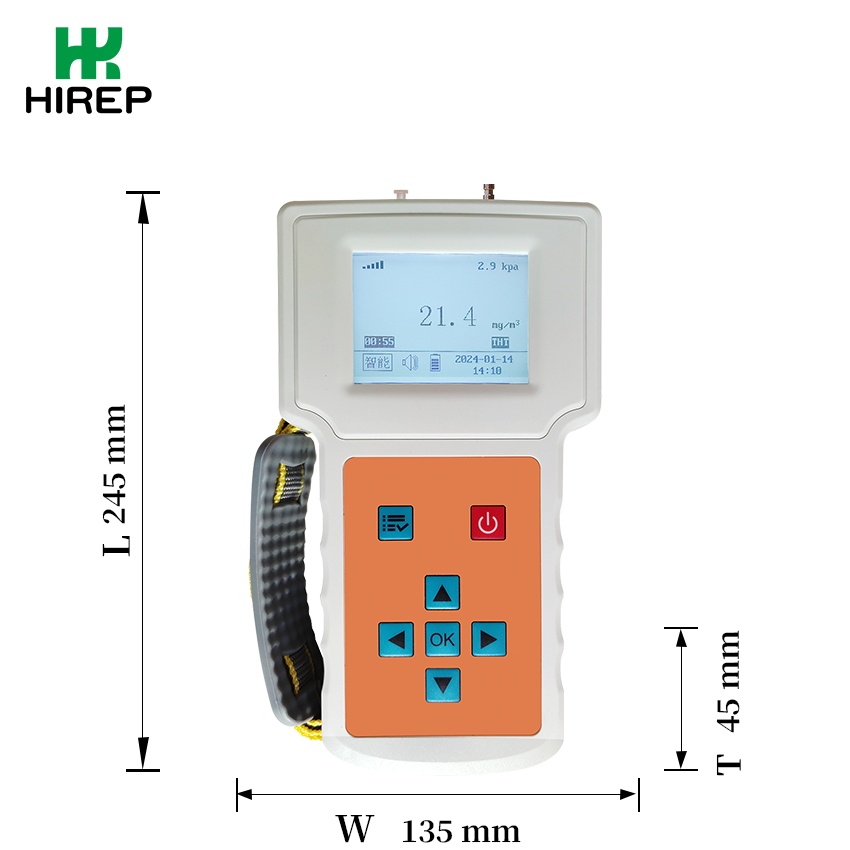

The size of the instrument is 245 × 135 × 45 mm, and the net weight is about 775 g, which is convenient for the staff to carry for on-site inspection and mobile detection.
IP54 protection
With IP54 protection level, it can provide certain dustproof and splash-proof protection under normal industrial use environment.
Technical parameter
| Parameter | Specification |
|---|---|
| Detection of gas | tetrahydrothiophene (THT) |
| Sampling mode | pumping type |
| Alarm point | can be set |
| Working hours | ≥ 10 hours |
| Power supply | Built-in rechargeable lithium battery |
| Protection grade | IP54 |
| Explosion-proof mark | Ex ib IIC T4 Gb |
| Working temperature | -30 C ~ 70 c |
| Working humidity | 0 ~ 95% RH |
| The main machine size | 245 × 135 × 45 mm (length × width × height) |
| The net weight of the instrument | 775g |
Frequently Asked Questions (FAQ)
1. What is HRP-670 tetrahydrothiophene detector?
HRP-670 is a portable gas detector for detecting tetrahydrothiophene (THT) concentration in the environment.
2. What is THT?
THT, the abbreviation of Tetrahydrothiophene, is a sulfur-containing compound commonly used for odorization of natural gas.
3. How does HRP-670 work?
The instrument actively inhales gas through the built-in sampling pump, and detects THT concentration through the sensor.
4. What sampling method does HRP-670 adopt?
HRP-670 adopts pumping sampling.
5. Can the alarm point be adjusted?
Yes, the alarm point can be set according to the actual detection requirements of users.
6. How long can HRP-670 work?
Under the specified conditions, the continuous working time is ≥10 hours.
7. What battery do you use?
Adopt built-in rechargeable lithium battery.
8. Does HRP-670 have explosion-proof function?
Yes, the explosion-proof mark of the product is Ex ib IIC T4 Gb.
9. What is the protection level?
The protection level of HRP-670 is IP54.
10. What is the working temperature range?
The working temperature range is -30 C ~ 70 C.
11. What is the working humidity range?
The working humidity range is 0 ~ 95% RH.
12. Where does HRP-670 apply?
It can be used in natural gas pipelines, urban gas systems, gas transmission and distribution facilities, industrial gas systems and related detection scenarios.
13. Can it be used for natural gas pipeline leakage detection?
Sure. The pumping sampling method is suitable for detecting valves, flanges, pipe joints and other suspected leakage points.
14. Is HRP-670 easy to carry?
Convenient. The instrument has a compact size and a net weight of about 775 g, which is suitable for on-site mobile inspection.
15. Who is suitable to use HRP-670?
Suitable for gas technicians, pipeline inspection personnel, equipment maintenance personnel, gas companies and industrial safety management personnel.
HRP-670 Tetrahydrothiophene Detector
- Sampling Method: Pump-suction type
- Alarm Point: Adjustable
- Operating Time: ≥10 hours
- Power Supply: Built-in rechargeable lithium battery
- Protection Rating: IP54
- Explosion-Proof Marking: Ex ib IIC T4 Gb
- Operating Temperature: -30°C to 70°C
- Operating Humidity: 0–95% RH
- Main Unit Dimensions: 245 mm × 135 mm × 45 mm (L × W × H)
- Net Weight: 775 g
Usb cable(Standard):
This Micro USB cable features thickened copper cores and high-density nylon braiding, offering excellent resistance to bending and abrasion for long-lasting durability.
Portable Calibrator Calibration Gas Cylinder(Optional):
The high-precision standard gas supply device designed by portable gas detector is used for periodic calibration, zero correction and range verification of sensors in the field or laboratory to ensure the accuracy and reliability of long-term operation data of testing equipment.
Calibration Hood(Standard):
The compact calibration cover designed by portable hand-held gas detector is used to quickly and accurately complete the zero calibration and range calibration of sensors on the equipment site. It is small, light and precise in structure, which ensures that the standard gas can cover the sensor probe efficiently and avoid the interference of ambient airflow. It is an indispensable professional accessory for daily maintenance and compliance testing.
Air Sampling Probe(Optional):
The high-precision and long-distance gas sampling extension tool designed by portable hand-held gas detector is used to safely and stably extend the probe into narrow space, high place, deep well, pipeline or dangerous area for remote gas detection, which greatly improves the operation safety and detection coverage.Typically used with sampling tubes.
Portable Hand-held Gas Detector Charger(Standard):
The high compatibility, safe and reliable charging solution designed by portable hand-held gas detector includes a standard two-pin plug power adapter and a USB-A to Micro-USB/Type-C data cable (matched according to the equipment interface), which ensures that the equipment can quickly recover power after field inspection, factory duty or emergency tasks, and ensures continuous and stable operation.
Extended Sampling Tube(Optional):
The portable hand-held or pumping gas detector is designed with a high flexibility and corrosion resistance to extend the sampling catheter, which is used to extend the gas inlet of the equipment to the detection points that are difficult to directly contact, such as the depth of the pipeline, the equipment interlayer, the high vent, the inside of the closed container, etc., so as to realize "remote accurate sampling" and greatly improve the detection coverage and operation safety.
Water Vapor and Dust Filter(Optional):
Blocks solid particles from entering the detector's gas path, preventing blockage and avoiding particle adhesion to the sensor surface, which could cause sensor poisoning, decreased sensitivity, slowed response, or even permanent failure. It also avoids physical interference from dust, ensuring the sensor only contacts the measured gas, thus guaranteeing measurement accuracy.
| Name | Chemical Formula | Lower Explosive Limit(Volume Fraction)in Air%VOL|Lower Limit | Serial No | Name | Chemical Formula | Lower Explosive Limit(Volume Fraction)in Air%VOL|Lower Limit | |
| 1 | Ethane | C₂H₆ | 3.0 | 49 | Cyclohexane | CH₂ (CH₂)₄CH₂ | 1.2 |
| 2 | Ethanol | C₂H₅OH | 3.4 | 50 | Cyclohexanol | CH₂ (CH₂)₃CHOHCH₂ | 1.2 |
| 3 | Ethylene | C₂H₄ | 2.8 | 51 | Cyclohexanone | CH₂ (CH₂)₃COCH₂ | 2.8 |
| 4 | Hydrogen | H₂ | 4.0 | 52 | Cyclopropane | CH₂CH₂CH₂ | 2.4 |
| 5 | Methane | CH₄ | 5.0 | 53 | Decane | C₁₀H₁8 | 0.7 |
| 6 | Methanol | CH₃OH | 5.5 | 54 | Cyclohexene | CH₂ (CH₂)₃CHCHCH₂ | 1.2 |
| 7 | Acetylene | C₂H₂ | 2.5 | 55 | Diacetone Alcohol | (CH₃)₂COHCH₂COCH₃ | 1.8 |
| 8 | Propanol | C₃H₇OH | 2.5 | 56 | Di-n-butyl Ether | C₄H₉OC₄H₉ | 0.9 |
| 9 | Propane | C₃H₈ | 2.2 | 57 | Dichlorobenzene | (C₆H₄)Cl₂ | 2.2 |
| 10 | Propylene | C₃H₆ | 2.4 | 58 | Diethylamine | (C₂H₅)₂NH | 1.7 |
| 11 | Toluene | C₆H₅CH₃ | 1.2 | 59 | Dimethylamine | (CH₃)₂NH | 2.8 |
| 12 | Xylene | C₆H₄ (CH₃)₂ | 1.0 | 60 | Dimethylaniline | (CH₃)₂C₆H₃NH₂ | 1.2 |
| 13 | Dichloromethane | C₂H₄Cl₂ | 5.6 | 61 | Dicyclohexylamine | (CH₂)₄O₂ | 1.9 |
| 14 | Dichloroethylene | C₂H₂Cl₂ | 6.5 | 62 | Ethylene Oxide | OCH₂CH₂CH₂ | 1.9 |
| 15 | Dichloropropane | C₃H₆Cl₂ | 3.4 | 63 | Diethyl Ether | C₂H₅OC₂H₅ | 1.8 |
| 16 | Diethyl Ether | C₂H₅OC₂H₅ | 1.7 | 64 | Ethyl Acetate | CH₃COOC₂H₅ | 2.1 |
| 17 | Dimethyl Ether | CH₃OCH₃ | 3.0 | 65 | Ethyl Acrylate | CH₂CHCO₂C₂H₅ | 1.7 |
| 18 | Formaldehyde | CH₂OCH | 4.0 | 66 | Styrene | C₆H₅C₂H₃ | 1.0 |
| 19 | Acetic Acid | CH₃COOH | 4.0 | 67 | Ethylene Oxide | CH₂CH₂O | 2.6 |
| 20 | Acetone | CH₃COCH₃ | 2.3 | 68 | Ethanethiol | C₂H₅SH | 2.3 |
| 21 | Acetyl Chloride | (CH₃CO)₂CH₂ | 1.7 | 69 | Ethyl Mercaptan | C₂H₅SCH₃ | 2.0 |
| 22 | Chloroform | CH₃COCl | 5.0 | 70 | Methyl Ethyl Ketone | C₃H₇COCH₃ | 1.8 |
| 23 | Acrylonitrile | CH₂CHCN | 2.8 | 71 | Ethylamine | C₂H₅NH₂ | 3.5 |
| 24 | Allyl Chloride | CH₂CHCH₂Cl | 3.2 | 72 | Gasoline | — | 0.9 |
| 25 | Methylacetylene | CH₃CCH | 1.7 | 73 | Kerosene | — | 0.7 |
| 26 | Amyl Acetate | CH₃CO₂C₅H₁1 | 1.0 | 74 | Turpentine | — | 1.8 |
| 27 | Aniline | C₆H₅NH₂ | 1.2 | 75 | Nitrobenzene | C₆H₅NO₂ | 1.8 |
| 28 | Benzene | C₆H₆ | 1.2 | 76 | Nitromethane | CH₃NO₂ | 7.1 |
| 29 | Benzaldehyde | C₆H₅CHO | 1.4 | 77 | Phenol | C₆H₅OH | 1.3 |
| 30 | Benzyl Chloride | C₆H₅CH₂Cl | 1.1 | 78 | Phenylacetylene | C₆H₅C₂H | 1.1 |
| 31 | Bromobenzene | C₆H₅CH₂Br | 2.5 | 79 | Ethylbenzene | C₆H₄C₂H₅ | 1.0 |
| 32 | Bromoethane | CH₃CH₂Br | 6.7 | 80 | Methyl Formate | HCOOC₂H₅ | 2.7 |
| 33 | Butadiene | CH₂CHCHCH₂ | 2.0 | 81 | p-Dioxane | C₄H₈O₂ | 2.0 |
| 34 | Butane | C₄H₁0 | 1.9 | 82 | Isobutane | i-C₄H₁0 | 1.8 |
| 35 | Butanol | C₄H₉OH | 1.8 | 83 | Naphthalene | C₁₀H₈ | 1.9 |
| 36 | Butylene | C₄H₈ | 1.6 | 84 | Nonane | CH₃ (CH₂)₇CH₃ | 0.7 |
| 37 | Butyraldehyde | C₃H₇CHO | 1.4 | 85 | Nonanol | CH₃ (CH₂)₇CH₂OH | 0.8 |
| 38 | Butyl Butyrate | C₃H₇COOC₄H₉ | 1.2 | 86 | Valeraldehyde | C₆H₁₀0 | 1.2 |
| 39 | Butyl Methyl Ketone | C₄H₉COCH₃ | 1.2 | 87 | Pentane | C₅H₁2 | 1.4 |
| 40 | Carbon Disulfide | CS₂ | 1.0 | 88 | Pentanol | C₅H₁₁OH | 1.2 |
| 41 | Chlorobenzene | C₆H₅Cl | 1.3 | 89 | Propylamine | C₃H₇NH₂ | 2.0 |
| 42 | Chlorobutane | C₄H₉CH₂Cl | 1.8 | 90 | Propyl Methyl Ketone | C₄H₉COCH₃ | 1.5 |
| 43 | Chloroethane | CH₃CH₂Cl | 3.8 | 91 | Pyridine | C₅H₅N | 1.7 |
| 44 | Chloroethylene | CH₂CHCl | 3.8 | 92 | Tetrahydrofuran | C₄H₈O | 2.0 |
| 45 | Chloromethane | CH₃Cl | 8.1 | 93 | Tetrahydrofurfuryl | C₅H₁₀O₂ | 1.5 |
| 46 | 2-Chloropropane | CH₃CHCICH₃ | 2.6 | 94 | Triethylamine | (C₂H₅)₃N | 1.2 |
| 47 | Cresol | C₆H₄OH | 1.1 | 95 | Trimethylamine | (CH₃)₃N | 2.0 |
| 48 | Cyclobutane | CH₂CH₂CH₂CH₂ | 1.8 | 96 | Trioxane | (CH₂O)₃ | 3.0 |
