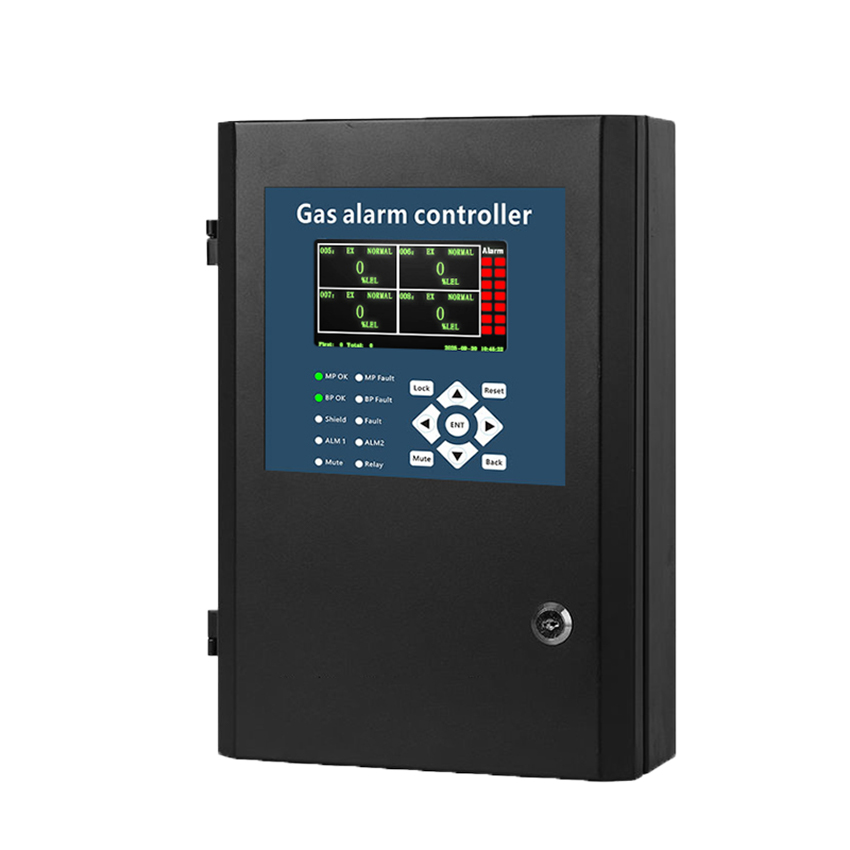

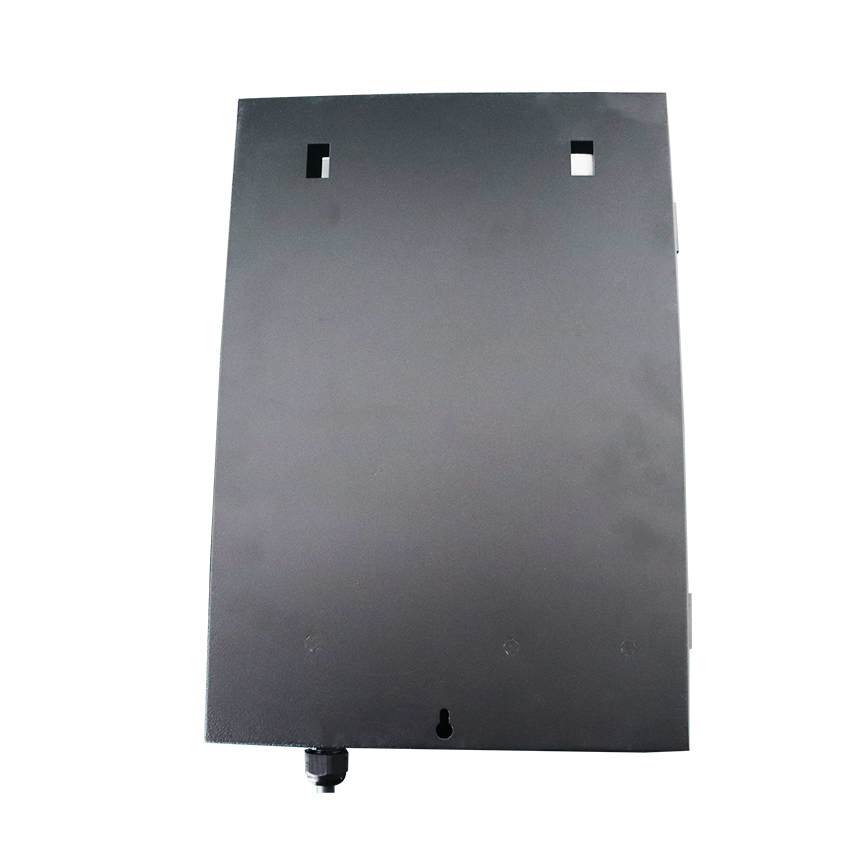

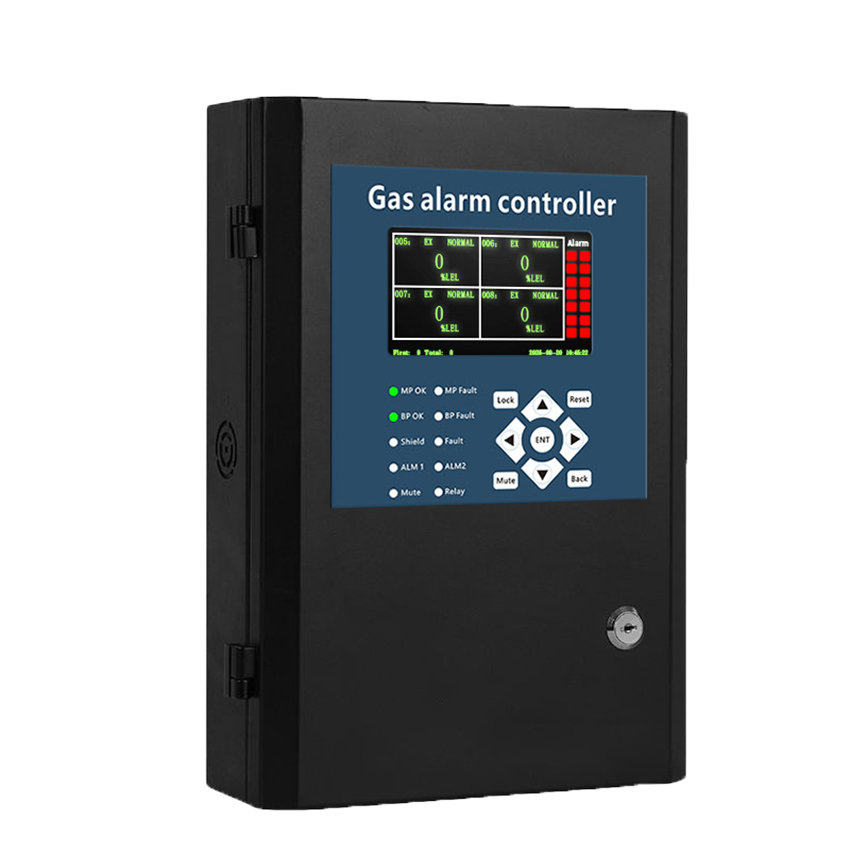

K3000 Plus Two-wire bus Gas Alarm Controller
The K3000 gas alarm controller is a centralized monitoring device using a two-wire bus communication method. It provides unified power supply, data acquisition, alarm management, and linkage control for multiple fixed gas detectors. Power supply and signal transmission are completed via a single two-core cable, significantly simplifying on-site wiring and improving system stability and construction efficiency.
-
High precision
-
Global Shipping
-
Customized
-
24*7 support
-
OEM/ODM
- Features
- Parameters
- Accessories
- Gases and Ranges
The K3000 gas alarm controller features a clear display interface and a user-friendly human-machine interface design. It supports alarm recording, fault self-diagnosis, access control, and parameter setting functions. Suitable for building small to medium-sized to large-scale gas alarm monitoring systems, it serves as the core management unit for industrial and civil gas safety systems.
This controller can simultaneously connect to multiple bus-type gas detectors, displaying real-time gas concentration, operating status, and alarm information at each detection point. When a gas concentration exceeds the limit, the system automatically triggers an audible and visual alarm and, through relay outputs or communication interfaces, links with ventilation equipment, solenoid valves, and other safety devices, achieving a rapid and effective safety response.
Single Gas Detec
- Display Screen: 4.3-inch LCD color display
- Setting Method: Button
- Power Supply: AC 85-240V 50Hz/60Hz
- Relay Output: 4 channels of passive relay output, contact rating 10 A / 220 VAC
- Operating Temperature: -10℃ to 50℃
- Relative Humidity: < 95% (non-condensing)
- System Power: Maximum 10 W (without external devices connected)
- Maximum Detectors Supported: 128 units
- Connection Method: 2-wire Bus/4-wire bus
- Digital upload: RS485 Modbus-RTU
- Alarm Type: Two-level alarm (user-configurable)
- Alarm Indication: Real-time alerts via indicator lights, LCD display, and buzzer
- Storage Capacity: Stores up to 20000 alarm event records
- Mounting: Wall-mounted installation
- Dimensions: 245 * 340 * 90 mm
