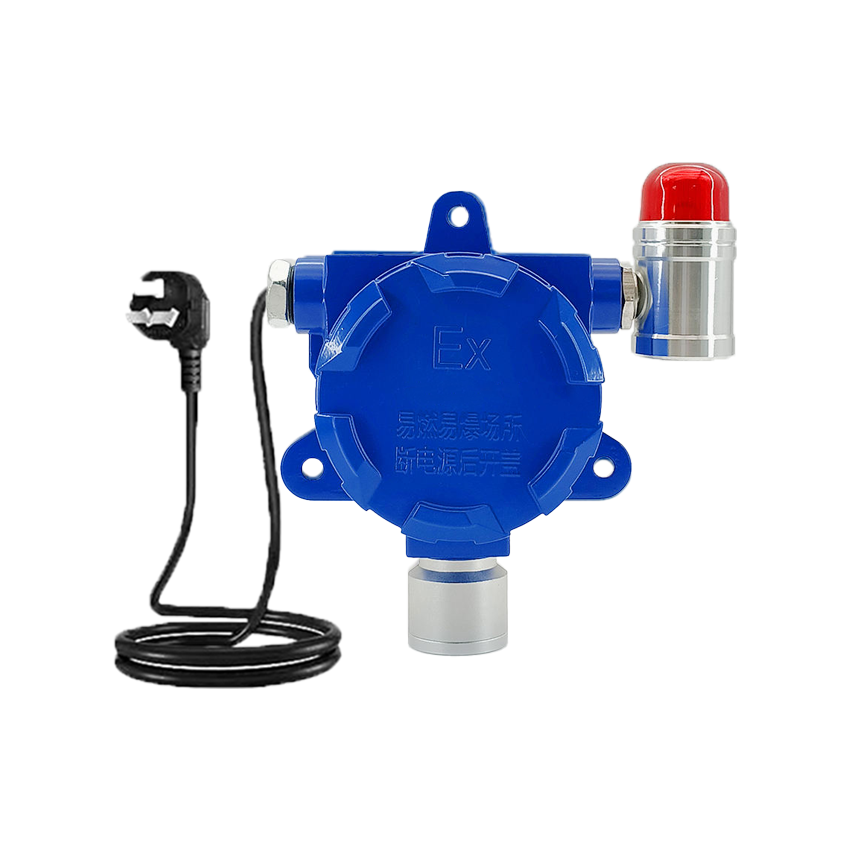

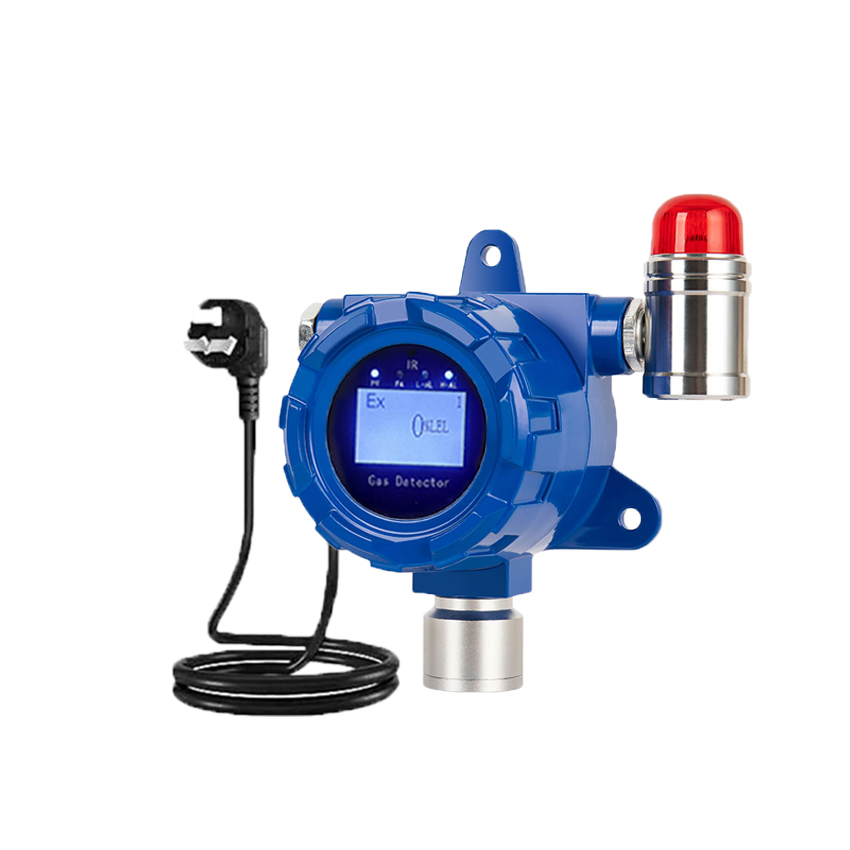

Stand-alone LCD Gas Detector HRP-T2000-D
The HRP-T2000-D stand-alone LCD gas detector is a plug-and-play safety monitoring device that integrates detection, high-definition LCD display, and independent alarm functions. It is specifically designed for small-scale industrial scenarios, commercial locations, and small work sites, addressing the core pain points of traditional detectors such as the need for external controllers, lack of real-time data visualization, and cumbersome operation. It enables independent gas concentration monitoring, intuitive data display, and risk warning, making it an efficient and convenient choice for small-scale gas safety protection.
-
High precision
-
Global Shipping
-
Customized
-
24*7 support
-
OEM/ODM
- Features
- Parameters
- Accessories
- Gases and Ranges
The HRP-T2000-D is a field-level safety monitoring device that requires no external control system and can operate independently locally. It is designed for gas leak monitoring and audible/visual alarm needs in small and medium-sized industrial sites and single-point risk areas, enabling even non-professional operators to quickly identify risks.
Product Advantages: Plug and play, no external controller required, easy installation, low cost, integrates detection, display, and alarm functions, independent early warning, flexible power supply, multiple installation methods, high reliability, low maintenance cost, and supports customization.
1.Detection and display are separated, so that workers can master the data of hazard sources in real time in safe areas.
2.Super bright screen, tens of meters away can also see the concentration value and alarm status at a glance.
3.The wired connection is stable and reliable, and is not affected by wall occlusion or signal interference, and the data has zero delay.
4.Support local linkage, and can directly control the fan or cut off the valve through the cable when giving an alarm.
5.The installation cost is low, and the remote display function can be easily extended by using the standard communication interface.
HRP-T2000-D independent LCD gas detector
Solution of industrial gas monitoring based on bright liquid crystal display
What is a stand-alone LCD gas detector?
- The displayed information is richer and more intuitive.
- The gas concentration reading is clearer.
- Better visibility in different lighting environments.
- Support more device status and parameter display.
Working principle of HRP-T2000-D
Detection process
- Ambient air continuously enters the sensor detection cavity.
- Gas molecules react with the sensor.
- The sensor converts the gas concentration change into an electrical signal.
- The built-in microprocessor analyzes and processes the signal.
- Real-time concentration data is displayed on the LCD screen.
- Output data through 4-20mA or RS485 Modbus interface.
- When the concentration exceeds the alarm threshold, the equipment automatically starts the acousto-optic alarm and outputs the relay linkage signal.
Product features and advantages
High definition LCD LCD screen
- Gas concentration data
- Alarm status
- Equipment operation state
- Fault information
- Communication status
Multi-gas detection capability
- Combustible gas (LEL)
- Methane (ch)
- Propane (C₃H₈)
- butane
- Hydrogen (h)
- Carbon monoxide (CO)
- Hydrogen sulfide (HS), etc.
24-hour continuous online monitoring
Quick response capability
Industrial explosion-proof design
- Oil and gas industry
- Chemical enterprise
- LNG station
- Tank area
- All kinds of industrial workshops
Multiple signal output modes
- 4-20mA analog output
- RS485 Modbus RTU communication
- Relay alarm output
- PLC system
- DCS system
- SCADA monitoring platform
- Industrial internet of things platform
Multistage alarm function
- Low alarm threshold setting
- High alarm threshold setting
- Acousto-optic alarm linkage
- Relay control output
Long service life and low maintenance cost.
- Long-term stable operation ability
- Lower maintenance frequency
- Lower use cost
- High system reliability
Application industry
Oil and gas industry
- Oil and gas pipeline
- LNG receiving station
- Natural gas pressure regulating station
- Tank area
- marine drilling platform
Petrochemical industry
- refinery
- Chemical production plant
- Process control area
- a loading area
- Hazardous chemicals storage area
electricity industry
- Hydrogen cooling system
- Gas system
- Energy storage project
- Auxiliary facilities of power plant
Mining industry
- Underground mine
- ventilation system
- Toxic gas monitoring point
- High-risk operation area
Industrial manufacturing industry
- welding shop
- painting workshop
- All kinds of industrial production lines
Environmental protection industry
- Sewage treatment plant
- Biogas engineering
- refuse landfill
- Exhaust gas treatment system
Why choose HRP-T2000-D?
- High-definition LCD display, more intuitive information
- 24-hour continuous online monitoring
- Fast detection speed and high precision.
- Design of industrial explosion-proof structure
- Support multiple communication and output modes.
- Multi-level alarm linkage function
- Easy access automatic control system
- Long service life and low maintenance cost.
product value
Single Gas Detec
- Detected Gases: Combustible gas, toxic gas, Oxygen
- Sample method: Diffuse naturally
- Detection Range:PPM, %LEL, %VOL, mg/m3
- Response Time: LEL<30S (T90), Toxic < 60 S
- Setting Method:Button OR Remote Control
- Power:AC 110V220V3W
- Output Signal:4-20MA/RS485Transmission
- Temperature:-20℃~+55℃
- Relative Humidity: 95%(NON-CONDENSING)
- Explosin-Proof Rating: ll 2G Ex db lIC T6 Gb
- Ingress protection: IP66
- Enclosure Material: Die-cast aluminum (Optional: 304 Stainless Steel)
- Dimersions:195 x185 x 95 m
- Product Weight: <1000gConnection Thread:M20x 1.5 or G1/2
LED Display Screen(Optional, not required):
This gas concentration monitoring display screen features a dual-color display and connects to the host computer via RS485 protocol. It is primarily used to display real-time concentration data for various gases. The font colors differ between alarm and normal states. Normal state text is blue, while alarm state text is red.
Mounting Bracket(Optional selection):
High-strength metal mounting brackets are specifically designed for mounting gas monitors and actuators, and are typically used for wall-mounted installations.
Calibration Hood(Optional selection):
This is a standard calibration cover specially designed for HIREP series fixed gas detectors, which is used for fast and accurate gas concentration calibration and sensor testing on the equipment site. It has simple structure and good sealing performance, which ensures that the gas can evenly cover the sensor probe during calibration and avoid external interference.
Sampling Tube(Optional):
The sampling tube is made of polytetrafluoroethylene (PTFE), which is resistant to high temperatures and corrosion. It is usually used in conjunction with an external pump to safely and stably deliver the gas to be tested in the environment to the sensor analysis unit. It is suitable for remote sampling, detection in confined spaces, or gas monitoring under complex working conditions.
Explosion-Proof Cable Gland(Optional):
Used for the safe wiring connection of fixed gas detector, alarm host or electrical equipment in explosive environment. Its structure conforms to international explosion-proof standards, ensuring reliable sealing and electrical isolation in flammable and explosive gas environment and preventing accidents caused by sparks or high temperature.
Rain cover(Optional):
Prevents rainwater, dew, and spray water from entering the detector housing, circuitry, and sensor cavity, preventing short circuits due to moisture on the circuit board, reducing rainwater corrosion, and minimizing aging damage to the detector housing and probe caused by ultraviolet radiation. Significantly improves equipment durability, especially suitable for outdoor, open-air, and factory outdoor installation scenarios.
| Name | Chemical Formula | Lower Explosive Limit(Volume Fraction)in Air%VOL|Lower Limit | Serial No | Name | Chemical Formula | Lower Explosive Limit(Volume Fraction)in Air%VOL|Lower Limit | |
| 1 | Ethane | C₂H₆ | 3.0 | 49 | Cyclohexane | CH₂ (CH₂)₄CH₂ | 1.2 |
| 2 | Ethanol | C₂H₅OH | 3.4 | 50 | Cyclohexanol | CH₂ (CH₂)₃CHOHCH₂ | 1.2 |
| 3 | Ethylene | C₂H₄ | 2.8 | 51 | Cyclohexanone | CH₂ (CH₂)₃COCH₂ | 2.8 |
| 4 | Hydrogen | H₂ | 4.0 | 52 | Cyclopropane | CH₂CH₂CH₂ | 2.4 |
| 5 | Methane | CH₄ | 5.0 | 53 | Decane | C₁₀H₁8 | 0.7 |
| 6 | Methanol | CH₃OH | 5.5 | 54 | Cyclohexene | CH₂ (CH₂)₃CHCHCH₂ | 1.2 |
| 7 | Acetylene | C₂H₂ | 2.5 | 55 | Diacetone Alcohol | (CH₃)₂COHCH₂COCH₃ | 1.8 |
| 8 | Propanol | C₃H₇OH | 2.5 | 56 | Di-n-butyl Ether | C₄H₉OC₄H₉ | 0.9 |
| 9 | Propane | C₃H₈ | 2.2 | 57 | Dichlorobenzene | (C₆H₄)Cl₂ | 2.2 |
| 10 | Propylene | C₃H₆ | 2.4 | 58 | Diethylamine | (C₂H₅)₂NH | 1.7 |
| 11 | Toluene | C₆H₅CH₃ | 1.2 | 59 | Dimethylamine | (CH₃)₂NH | 2.8 |
| 12 | Xylene | C₆H₄ (CH₃)₂ | 1.0 | 60 | Dimethylaniline | (CH₃)₂C₆H₃NH₂ | 1.2 |
| 13 | Dichloromethane | C₂H₄Cl₂ | 5.6 | 61 | Dicyclohexylamine | (CH₂)₄O₂ | 1.9 |
| 14 | Dichloroethylene | C₂H₂Cl₂ | 6.5 | 62 | Ethylene Oxide | OCH₂CH₂CH₂ | 1.9 |
| 15 | Dichloropropane | C₃H₆Cl₂ | 3.4 | 63 | Diethyl Ether | C₂H₅OC₂H₅ | 1.8 |
| 16 | Diethyl Ether | C₂H₅OC₂H₅ | 1.7 | 64 | Ethyl Acetate | CH₃COOC₂H₅ | 2.1 |
| 17 | Dimethyl Ether | CH₃OCH₃ | 3.0 | 65 | Ethyl Acrylate | CH₂CHCO₂C₂H₅ | 1.7 |
| 18 | Formaldehyde | CH₂OCH | 4.0 | 66 | Styrene | C₆H₅C₂H₃ | 1.0 |
| 19 | Acetic Acid | CH₃COOH | 4.0 | 67 | Ethylene Oxide | CH₂CH₂O | 2.6 |
| 20 | Acetone | CH₃COCH₃ | 2.3 | 68 | Ethanethiol | C₂H₅SH | 2.3 |
| 21 | Acetyl Chloride | (CH₃CO)₂CH₂ | 1.7 | 69 | Ethyl Mercaptan | C₂H₅SCH₃ | 2.0 |
| 22 | Chloroform | CH₃COCl | 5.0 | 70 | Methyl Ethyl Ketone | C₃H₇COCH₃ | 1.8 |
| 23 | Acrylonitrile | CH₂CHCN | 2.8 | 71 | Ethylamine | C₂H₅NH₂ | 3.5 |
| 24 | Allyl Chloride | CH₂CHCH₂Cl | 3.2 | 72 | Gasoline | — | 0.9 |
| 25 | Methylacetylene | CH₃CCH | 1.7 | 73 | Kerosene | — | 0.7 |
| 26 | Amyl Acetate | CH₃CO₂C₅H₁1 | 1.0 | 74 | Turpentine | — | 1.8 |
| 27 | Aniline | C₆H₅NH₂ | 1.2 | 75 | Nitrobenzene | C₆H₅NO₂ | 1.8 |
| 28 | Benzene | C₆H₆ | 1.2 | 76 | Nitromethane | CH₃NO₂ | 7.1 |
| 29 | Benzaldehyde | C₆H₅CHO | 1.4 | 77 | Phenol | C₆H₅OH | 1.3 |
| 30 | Benzyl Chloride | C₆H₅CH₂Cl | 1.1 | 78 | Phenylacetylene | C₆H₅C₂H | 1.1 |
| 31 | Bromobenzene | C₆H₅CH₂Br | 2.5 | 79 | Ethylbenzene | C₆H₄C₂H₅ | 1.0 |
| 32 | Bromoethane | CH₃CH₂Br | 6.7 | 80 | Methyl Formate | HCOOC₂H₅ | 2.7 |
| 33 | Butadiene | CH₂CHCHCH₂ | 2.0 | 81 | p-Dioxane | C₄H₈O₂ | 2.0 |
| 34 | Butane | C₄H₁0 | 1.9 | 82 | Isobutane | i-C₄H₁0 | 1.8 |
| 35 | Butanol | C₄H₉OH | 1.8 | 83 | Naphthalene | C₁₀H₈ | 1.9 |
| 36 | Butylene | C₄H₈ | 1.6 | 84 | Nonane | CH₃ (CH₂)₇CH₃ | 0.7 |
| 37 | Butyraldehyde | C₃H₇CHO | 1.4 | 85 | Nonanol | CH₃ (CH₂)₇CH₂OH | 0.8 |
| 38 | Butyl Butyrate | C₃H₇COOC₄H₉ | 1.2 | 86 | Valeraldehyde | C₆H₁₀0 | 1.2 |
| 39 | Butyl Methyl Ketone | C₄H₉COCH₃ | 1.2 | 87 | Pentane | C₅H₁2 | 1.4 |
| 40 | Carbon Disulfide | CS₂ | 1.0 | 88 | Pentanol | C₅H₁₁OH | 1.2 |
| 41 | Chlorobenzene | C₆H₅Cl | 1.3 | 89 | Propylamine | C₃H₇NH₂ | 2.0 |
| 42 | Chlorobutane | C₄H₉CH₂Cl | 1.8 | 90 | Propyl Methyl Ketone | C₄H₉COCH₃ | 1.5 |
| 43 | Chloroethane | CH₃CH₂Cl | 3.8 | 91 | Pyridine | C₅H₅N | 1.7 |
| 44 | Chloroethylene | CH₂CHCl | 3.8 | 92 | Tetrahydrofuran | C₄H₈O | 2.0 |
| 45 | Chloromethane | CH₃Cl | 8.1 | 93 | Tetrahydrofurfuryl | C₅H₁₀O₂ | 1.5 |
| 46 | 2-Chloropropane | CH₃CHCICH₃ | 2.6 | 94 | Triethylamine | (C₂H₅)₃N | 1.2 |
| 47 | Cresol | C₆H₄OH | 1.1 | 95 | Trimethylamine | (CH₃)₃N | 2.0 |
| 48 | Cyclobutane | CH₂CH₂CH₂CH₂ | 1.8 | 96 | Trioxane | (CH₂O)₃ | 3.0 |
