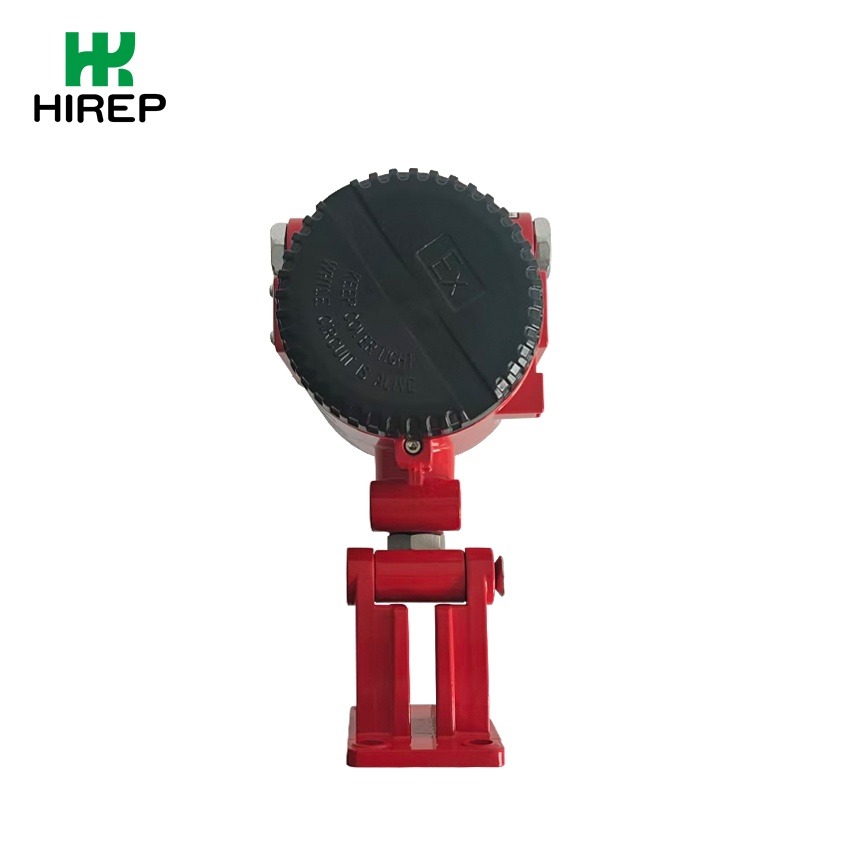

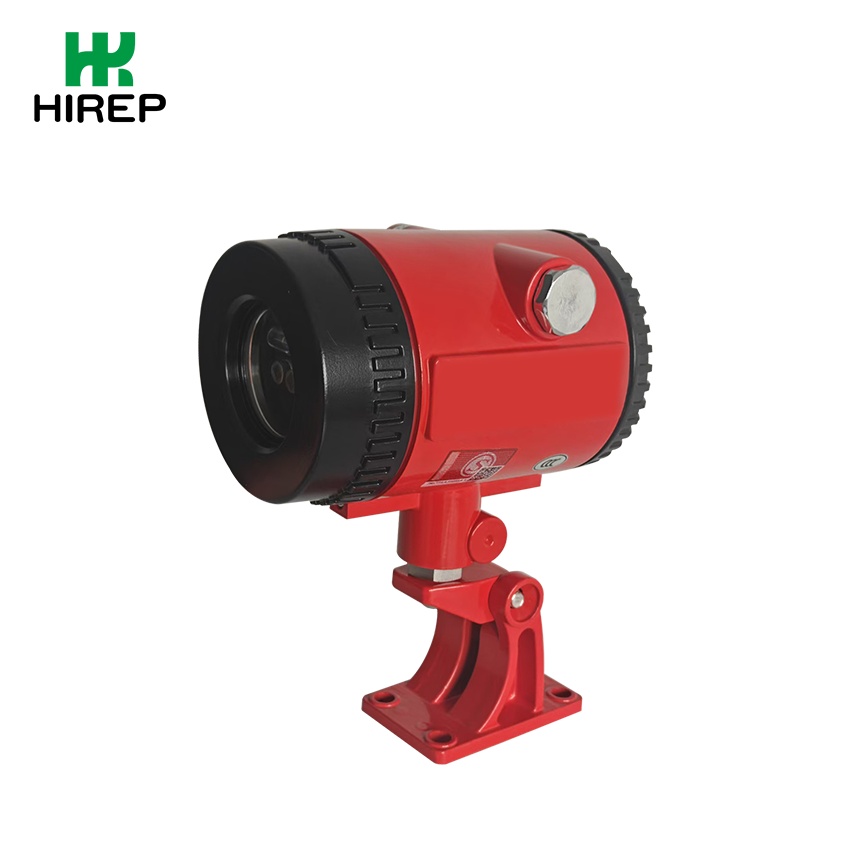

HRP-H1000UVIR2 Flame Detector

HRP-H1000UVIR2 Point-Type UV/IR Flame Detector (hereinafter referred to as the flame detector) benefits from years of data accumulation and field installation experience, giving it advanced flame detection capabilities and a wide range of interfaces. Its rational structural design makes installation and wiring convenient. The 360° adjustable bracket allows the detection range to be adjusted at any time, providing convenience for subsequent maintenance and adjustment.

Multi-spectrum flame detection technology is one of the best solutions for timely fire warning. This technology detects fires by detecting the characteristic ultraviolet and infrared radiation emitted by flames, providing faster alarm response than traditional smoke or temperature-based fire detection technologies. Especially in open areas, the warning time can be greatly reduced. The flame detector uses high-performance photosensitive sensors combined with signal-processing algorithms built into the microprocessor to effectively distinguish real flame radiation from interference sources. While providing rapid fire alarm response, it also greatly reduces the impact of environmental factors such as moving objects, sunlight, lighting, and air conditioning on the detector, thereby significantly reducing false alarms.

1. HRP-H1000UVIR2 Point-Type UV/IR Flame Detector User Manual

2. Main Features

● High-performance, high-speed, low-power data-processing chip with strong anti-interference capability.

● Mainly suitable for detecting fires caused by the combustion of hydrocarbons, metals, inorganic substances, and other materials, with significant response to materials such as wood, oil, ethanol, hydrogen, phosphorus, and lithium metal.

● Uses 3 sensors with reasonable division of functions and coordinated operation.

● Dual-color high-brightness indicator lights with up to 22,000 mcd luminous intensity provide rapid switching and clearer indication of the operating status.

● Rich multifunctional interfaces can be connected to various control devices, including switch output, 4–20 mA output, RS485 communication, and 24 V active/passive selectable relay output.

● Built-in multi-level overcurrent, overvoltage, electrostatic, and lightning protection circuits help eliminate the impact on connected lines.

● Advanced algorithms optimally combine flame detection capability with false-alarm prevention.

● The detector is suitable for various fuel combustion conditions.

● Explosion-proof design makes it suitable for use in industrial sites located in hazardous areas.

● Uses high-quality precision barrier-type terminal blocks to ensure stable and reliable connections, with partitions and other protective features.

HRP-H1000UVIR2 Point Ultraviolet/Infrared Flame Detector

Product Introduction

HRP-H1000UVIR2 point ultraviolet/infrared flame detector is an explosion-proof flame detection device specially designed for dangerous and industrial environments, which can detect open flames quickly and reliably.

The detector adopts the dual-spectrum flame detection technology of ultraviolet (UV) and infrared (IR), and judges the flame by identifying the characteristic radiation generated by the flame. The detection range of ultraviolet sensor is 180–260 nm, and that of infrared sensor is 3.8–4.3 μm. By analyzing the signals in two different spectral ranges, the reliability of flame identification can be improved and the possibility of false alarm caused by some non-flame radiation can be reduced.

The product has an infrared field of view angle of 90° and an ultraviolet field of view angle of 120°, and can be used for large-scale monitoring of industrial equipment, production areas, fuel storage facilities and other high-risk areas.

HRP-H1000UVIR2 supports DC24V power supply, relay output, 4–20mA output and standard RS485 communication, and can be flexibly connected to fire alarm system, industrial control system, emergency stop system and centralized safety monitoring platform.

The product is made of metal shell, the protection level reaches IP66, and the explosion-proof mark is Ex db IIC T6 Gb, which is suitable for dangerous industrial environment meeting the corresponding requirements.

Principle of Operation

HRP-H1000UVIR2 works based on UV/IR dual-spectrum flame detection technology.

When a flame occurs in the detection area, the flame will produce ultraviolet and infrared radiation in a specific band. The ultraviolet sensor detects ultraviolet radiation in 180–260 nm band, and the infrared sensor detects infrared radiation in 3.8–4.3 μm band.

The detector continuously analyzes the signals received by the two detection channels. When the detected radiation characteristics meet the preset flame recognition conditions, the detector judges that there is a flame event and starts the corresponding alarm output.

The basic detection process is:

Flame radiation → UV/IR sensor detection → signal processing → flame identification → alarm output.

The detector provides relay contact, 4–20mA analog signal and RS485 communication, which can transmit alarm status and monitoring information to external control and safety system.

Application Industry

1. Oil and Gas Industry

Suitable for oil and gas facilities, refineries, pumping stations, loading and unloading areas, production equipment and other places where combustible hydrocarbons may exist.

2. Petrochemical Industry

It can be used in dangerous process areas, storage facilities, pipelines, production equipment and other petrochemical sites that need continuous flame monitoring.

3. Chemical Industry

Suitable for chemical plants, combustible material storage areas, production and processing facilities and production areas with fire and explosion risks.

4. Fuel Storage and Transportation

It is suitable for fuel storage tanks, transportation stations, loading and unloading areas and other places where open flames need to be detected quickly.

5. Industrial Manufacturing

It can be integrated into industrial fire detection and safety system to monitor the flame of high-risk production equipment and process areas.

6. Warehousing and Storage Facilities

Suitable for warehouses and storage areas where flammable liquids, gases, chemicals and other flammable materials are stored.

Product Advantage

1. UV/IR Dual-Spectrum Detection

Combining ultraviolet and infrared detection technologies, flame identification is carried out through two different spectral channels, which improves the detection reliability and helps to reduce the false alarm caused by some single radiation sources.

2. Fast Flame Detection

By directly identifying the characteristic radiation produced by the flame, the open flame can be quickly identified without relying entirely on smoke or temperature accumulation.

3. Large-Scale Detection

The product has an ultraviolet viewing angle of 120° and an infrared viewing angle of 90°, which can cover a large monitoring area under the condition of correct installation and layout.

4. A Variety of Signal Output

It supports two sets of relay contact outputs, 4–20mA outputs and standard RS485 communication, which is convenient for connection with different types of fire alarm systems and industrial control systems.

5. Explosion-Proof Design

The explosion-proof mark of the product is Ex db IIC T6 Gb, which is suitable for the specified dangerous areas that need explosion-proof protection.

6. IP66 Protection

It is made of solid metal shell with IP66 protection grade, which can prevent dust from entering and can withstand strong water washing, and is suitable for harsh industrial environment.

7. Flexible System Integration

Through 4–20mA and RS485 interface, PLC, fire alarm host, industrial monitoring system and other control platforms can be connected conveniently.

8. Wide Temperature Working Range

The working temperature range of the product is -20°C to +55°C, which can meet the needs of various industrial environments.

Frequently Asked Questions FAQ

1. What product is HRP-H1000UVIR2?

HRP-H1000UVIR2 is a point-type UV/IR flame detector, which can identify open flames by detecting ultraviolet and infrared radiation generated by the flames.

2. How does the UV/IR flame detector work?

The detector detects the characteristic ultraviolet and infrared radiation produced by the flame, and processes and analyzes the signals to judge whether there is a flame event.

3. What is the ultraviolet detection range?

The ultraviolet detection range is 180–260 nm.

4. What is the infrared detection range?

The infrared detection range is 3.8–4.3 μm.

5. What is the field of view angle of the detector?

The ultraviolet field of view is 120°, and the infrared field of view is 90°.

6. What power supply does the detector need?

The detector is powered by DC24V power supply.

7. What are the signal outputs of the detector?

The product provides two sets of relay contact outputs, 4–20mA outputs and standard RS485 communication.

8. Can I connect to PLC?

Sure. Through 4–20mA output and RS485 communication interface, it can be integrated with compatible PLC and industrial monitoring system.

9. Does the detector have explosion-proof function?

Yes. The explosion-proof mark of the product is Ex db IIC T6 Gb, which is suitable for installation in hazardous areas that meet the requirements.

10. What is the product protection level?

The protection grade of the product is IP66, which can provide dustproof and strong water flushing protection.

11. What is the working temperature range?

The operating temperature range is -20°C to +55°C.

12. What is the material of the detector shell?

The detector adopts metal shell, which is suitable for industrial application environment.

13. Can the 4–20mA output be adjusted?

Sure. According to the system configuration requirements, the 4–20mA signal values of monitoring status and alarm status can be adjusted.

14. Which industries does HRP-H1000UVIR2 apply to?

It is mainly suitable for oil and gas, petrochemical industry, chemical industry, fuel storage, industrial manufacturing and other industrial environments with open flame risk.

15. What should I pay attention to when installing the detector?

During installation, ensure that the detector can clearly cover the potential fire danger area. At the same time, it is necessary to reasonably determine the installation location according to the required detection range, site environment, dangerous area level and relevant local regulations and standards.

Technical Parameter Highlights

Detection technology: UV/IR bispectrum
Ultraviolet spectral range: 180–260 nm
Infrared spectrum range: 3.8–4.3 μm
Working voltage: DC24V
View angle: UV 120°/IR 90°
Output mode: relay/4–20mA/RS485
Protection grade: IP66
Explosion-proof mark: Ex db IIC T6 Gb
Operating temperature: -20°C to +55°C
Shell material: metal
Electrical interface: M20×1.5

Reliable Flame Detection Scheme Suitable for Dangerous Industrial Environment

With UV/IR dual-spectrum detection, large viewing angle, multiple signal outputs, explosion-proof structure and IP66 protection, HRP-H1000UVIR2 can provide a reliable continuous flame monitoring scheme for industrial safety applications.

Products can be integrated into fire alarm system, industrial control system, emergency stop system and centralized monitoring platform to help identify potential fire events in time and provide support for safety monitoring and emergency response in industrial sites.

HRP-H1000UVIR2 Point-Type UV/IR Flame Detector

Operating Voltage: DC24V
Monitoring Current: ≤20mA
Alarm Current: ≤50mA
Monitoring Status Indicator: Green LED continuously ON (flashes within 5s during power-on initialization)
Alarm Indicator: Red LED continuously ON
Viewing Angle: Infrared 90°, Ultraviolet 120°
Applicable Standards: GB 15631-2008, GB 12791-2006
Operating Temperature: -20°C to +55°C
Storage Temperature: -20°C to +65°C
Housing Material: Metal
Sensitivity Level: Class I
Output Signal: Two sets of relay contact outputs
Output Signal: 4–20mA output
Communication Signal: Standard RS485 (protocol can be customized)
Fire Alarm Relay: Contact Rating 2A/30VDC, 1A/125VAC
Other Signal Relay: Contact Rating 2A/24VDC, 2A/120VAC
4–20mA Signal: Monitoring Status 5mA (adjustable)
4–20mA Signal: Alarm Status 20mA (adjustable)
Spectral Range: UV 180nm–260nm
Spectral Range: IR 3.8–4.3μm
Electrical Interface: M20×1.5
Operating Humidity: 0–93%±3%RH, non-condensing
Explosion Protection Marking: Ex db IIC T6 Gb
Ingress Protection Rating: IP66
Overall Dimensions: 152mm×111mm×130mm
Detection Distance & Response Time: 33×33cm alcohol fire or n-heptane fire at 25m, alarm within 30s

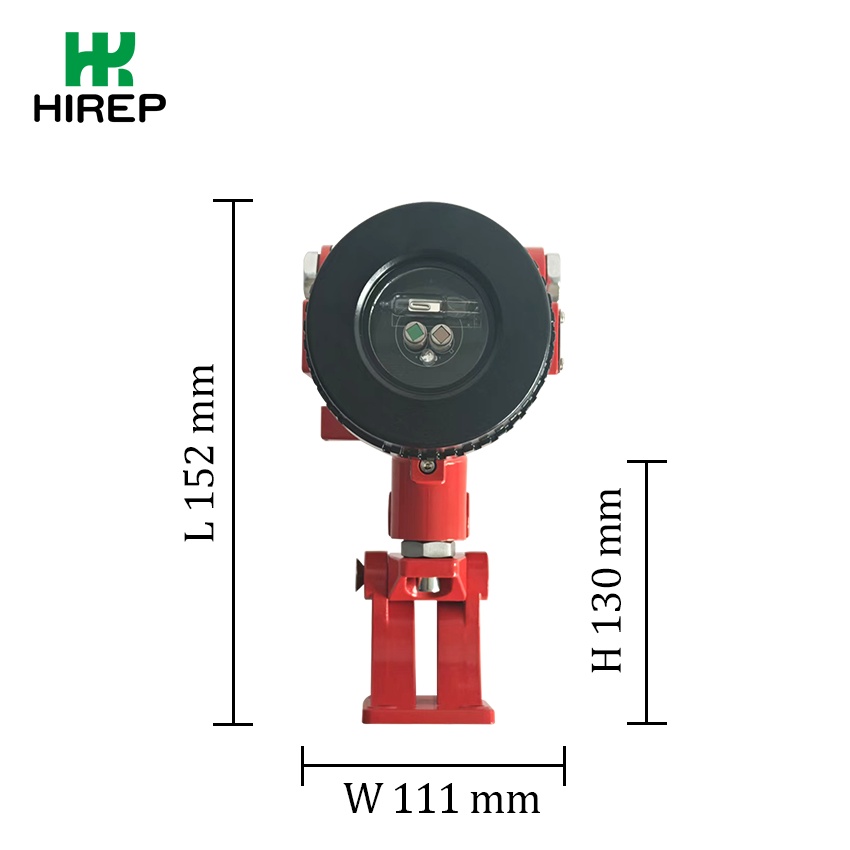

HRP-H1000UVIR2-Flame-Detector-Dimensions

Usb cable(Standard):

This Micro USB cable features thickened copper cores and high-density nylon braiding, offering excellent resistance to bending and abrasion for long-lasting durability.

Portable Calibrator Calibration Gas Cylinder(Optional):

The high-precision standard gas supply device designed by portable gas detector is used for periodic calibration, zero correction and range verification of sensors in the field or laboratory to ensure the accuracy and reliability of long-term operation data of testing equipment.

Calibration Hood(Standard):

The compact calibration cover designed by portable hand-held gas detector is used to quickly and accurately complete the zero calibration and range calibration of sensors on the equipment site. It is small, light and precise in structure, which ensures that the standard gas can cover the sensor probe efficiently and avoid the interference of ambient airflow. It is an indispensable professional accessory for daily maintenance and compliance testing.

Air Sampling Probe(Optional):

The high-precision and long-distance gas sampling extension tool designed by portable hand-held gas detector is used to safely and stably extend the probe into narrow space, high place, deep well, pipeline or dangerous area for remote gas detection, which greatly improves the operation safety and detection coverage.Typically used with sampling tubes.

Portable Hand-held Gas Detector Charger(Standard):

The high compatibility, safe and reliable charging solution designed by portable hand-held gas detector includes a standard two-pin plug power adapter and a USB-A to Micro-USB/Type-C data cable (matched according to the equipment interface), which ensures that the equipment can quickly recover power after field inspection, factory duty or emergency tasks, and ensures continuous and stable operation.

Extended Sampling Tube(Optional):

The portable hand-held or pumping gas detector is designed with a high flexibility and corrosion resistance to extend the sampling catheter, which is used to extend the gas inlet of the equipment to the detection points that are difficult to directly contact, such as the depth of the pipeline, the equipment interlayer, the high vent, the inside of the closed container, etc., so as to realize "remote accurate sampling" and greatly improve the detection coverage and operation safety.

Water Vapor and Dust Filter(Optional):

Blocks solid particles from entering the detector's gas path, preventing blockage and avoiding particle adhesion to the sensor surface, which could cause sensor poisoning, decreased sensitivity, slowed response, or even permanent failure. It also avoids physical interference from dust, ensuring the sensor only contacts the measured gas, thus guaranteeing measurement accuracy.

	Name	Chemical Formula	Lower Explosive Limit(Volume Fraction)in Air%VOL\|Lower Limit	Serial No	Name	Chemical Formula	Lower Explosive Limit(Volume Fraction)in Air%VOL\|Lower Limit
	Name	Chemical Formula		Serial No	Name	Chemical Formula
1	Ethane	C₂H₆	3.0	49	Cyclohexane	CH₂ (CH₂)₄CH₂	1.2
2	Ethanol	C₂H₅OH	3.4	50	Cyclohexanol	CH₂ (CH₂)₃CHOHCH₂	1.2
3	Ethylene	C₂H₄	2.8	51	Cyclohexanone	CH₂ (CH₂)₃COCH₂	2.8
4	Hydrogen	H₂	4.0	52	Cyclopropane	CH₂CH₂CH₂	2.4
5	Methane	CH₄	5.0	53	Decane	C₁₀H₁8	0.7
6	Methanol	CH₃OH	5.5	54	Cyclohexene	CH₂ (CH₂)₃CHCHCH₂	1.2
7	Acetylene	C₂H₂	2.5	55	Diacetone Alcohol	(CH₃)₂COHCH₂COCH₃	1.8
8	Propanol	C₃H₇OH	2.5	56	Di-n-butyl Ether	C₄H₉OC₄H₉	0.9
9	Propane	C₃H₈	2.2	57	Dichlorobenzene	(C₆H₄)Cl₂	2.2
10	Propylene	C₃H₆	2.4	58	Diethylamine	(C₂H₅)₂NH	1.7
11	Toluene	C₆H₅CH₃	1.2	59	Dimethylamine	(CH₃)₂NH	2.8
12	Xylene	C₆H₄ (CH₃)₂	1.0	60	Dimethylaniline	(CH₃)₂C₆H₃NH₂	1.2
13	Dichloromethane	C₂H₄Cl₂	5.6	61	Dicyclohexylamine	(CH₂)₄O₂	1.9
14	Dichloroethylene	C₂H₂Cl₂	6.5	62	Ethylene Oxide	OCH₂CH₂CH₂	1.9
15	Dichloropropane	C₃H₆Cl₂	3.4	63	Diethyl Ether	C₂H₅OC₂H₅	1.8
16	Diethyl Ether	C₂H₅OC₂H₅	1.7	64	Ethyl Acetate	CH₃COOC₂H₅	2.1
17	Dimethyl Ether	CH₃OCH₃	3.0	65	Ethyl Acrylate	CH₂CHCO₂C₂H₅	1.7
18	Formaldehyde	CH₂OCH	4.0	66	Styrene	C₆H₅C₂H₃	1.0
19	Acetic Acid	CH₃COOH	4.0	67	Ethylene Oxide	CH₂CH₂O	2.6
20	Acetone	CH₃COCH₃	2.3	68	Ethanethiol	C₂H₅SH	2.3
21	Acetyl Chloride	(CH₃CO)₂CH₂	1.7	69	Ethyl Mercaptan	C₂H₅SCH₃	2.0
22	Chloroform	CH₃COCl	5.0	70	Methyl Ethyl Ketone	C₃H₇COCH₃	1.8
23	Acrylonitrile	CH₂CHCN	2.8	71	Ethylamine	C₂H₅NH₂	3.5
24	Allyl Chloride	CH₂CHCH₂Cl	3.2	72	Gasoline	—	0.9
25	Methylacetylene	CH₃CCH	1.7	73	Kerosene	—	0.7
26	Amyl Acetate	CH₃CO₂C₅H₁1	1.0	74	Turpentine	—	1.8
27	Aniline	C₆H₅NH₂	1.2	75	Nitrobenzene	C₆H₅NO₂	1.8
28	Benzene	C₆H₆	1.2	76	Nitromethane	CH₃NO₂	7.1
29	Benzaldehyde	C₆H₅CHO	1.4	77	Phenol	C₆H₅OH	1.3
30	Benzyl Chloride	C₆H₅CH₂Cl	1.1	78	Phenylacetylene	C₆H₅C₂H	1.1
31	Bromobenzene	C₆H₅CH₂Br	2.5	79	Ethylbenzene	C₆H₄C₂H₅	1.0
32	Bromoethane	CH₃CH₂Br	6.7	80	Methyl Formate	HCOOC₂H₅	2.7
33	Butadiene	CH₂CHCHCH₂	2.0	81	p-Dioxane	C₄H₈O₂	2.0
34	Butane	C₄H₁0	1.9	82	Isobutane	i-C₄H₁0	1.8
35	Butanol	C₄H₉OH	1.8	83	Naphthalene	C₁₀H₈	1.9
36	Butylene	C₄H₈	1.6	84	Nonane	CH₃ (CH₂)₇CH₃	0.7
37	Butyraldehyde	C₃H₇CHO	1.4	85	Nonanol	CH₃ (CH₂)₇CH₂OH	0.8
38	Butyl Butyrate	C₃H₇COOC₄H₉	1.2	86	Valeraldehyde	C₆H₁₀0	1.2
39	Butyl Methyl Ketone	C₄H₉COCH₃	1.2	87	Pentane	C₅H₁2	1.4
40	Carbon Disulfide	CS₂	1.0	88	Pentanol	C₅H₁₁OH	1.2
41	Chlorobenzene	C₆H₅Cl	1.3	89	Propylamine	C₃H₇NH₂	2.0
42	Chlorobutane	C₄H₉CH₂Cl	1.8	90	Propyl Methyl Ketone	C₄H₉COCH₃	1.5
43	Chloroethane	CH₃CH₂Cl	3.8	91	Pyridine	C₅H₅N	1.7
44	Chloroethylene	CH₂CHCl	3.8	92	Tetrahydrofuran	C₄H₈O	2.0
45	Chloromethane	CH₃Cl	8.1	93	Tetrahydrofurfuryl	C₅H₁₀O₂	1.5
46	2-Chloropropane	CH₃CHCICH₃	2.6	94	Triethylamine	(C₂H₅)₃N	1.2
47	Cresol	C₆H₄OH	1.1	95	Trimethylamine	(CH₃)₃N	2.0
48	Cyclobutane	CH₂CH₂CH₂CH₂	1.8	96	Trioxane	(CH₂O)₃	3.0
